MLC-CDH81

MLC-CDH81

分類:家電專用電容
金屬化薄膜交流濾波電容器
特點/ Feature
● 干式固態環氧(防爆阻燃)
● 帶高壓二極管,安裝方便,減少了安裝成本
● 金屬化薄膜電容器的介質損耗角小(≤0.0008 (1KHz))發熱小
● 填充料為導熱防爆阻燃材料,干式結構, 85℃正常使用,無須考慮漏油等二次污染
● 有自愈恢復功能
  • 案例詳情
  • 更多內容

應用場合/ Applications

● 適用于微波爐中,50Hz~60Hz的交流電源線上,可在額定條件下連續工作聯諧振

● Suitable for microwave oven, 50Hz ~ 60Hz AC power supply line, can work continuously under the rated conditions

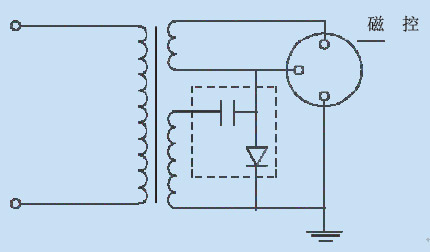

典型線路圖 /Typical circuit




外形圖及參考尺寸/Outline drawing



容量Cn(μF)電壓Un (V.AC)外形尺寸 (mm)
WTH
0.80210052.032.063.0
0.85210052.032.063.0
0.90210052.032.063.0
0.95210052.032.063.0
1.00210052.032.063.0
1.05210052.032.067.0
1.1210052.032.067.0


性能指標/ Technical data

氣候類別/Climate Category10/85/21
工作溫度/Working Temperature-10℃~+85℃
相對濕度/Relative humidity45%~85%
大氣壓/Barometric pressure106~815Kpa
容量范圍/Capacitance Range0.5uF-1.2uF
額定電壓/Rated Voltage2100V.AC
容量偏差/Capacitance Tolerance±3%
額定工作頻率/Rated working frequency50~60Hz
內裝放電電阻/Built-in discharge resistor10M?±10%
高壓二極管(可選裝)/High voltage diode (Optional)EN133200:1999;GB/T15287-94;GB/T15288-94;GB 7343-87
極間耐電壓/Withstand voltage between terminals9030VDC 10s
極殼間耐電壓/Withstand voltage between terminals and case9000VAC 5s
損耗角正切值/Dissipation factor≤0.0010(1KHz)
引用標準/Reference to Standard符合IEC61270-1, GB/T 18939-1
