應用場合/ Applications
● SVG動態無功補償設備
● 太陽能發電，風力發電用逆變器上
● 變頻器，UPS，電焊機，電源機車，電動汽車和混合動力車
● SVG equipment
● Solar&Wind Power inverters
● Converters, power supply for Train ,Electronic vehicle and hybrid train.

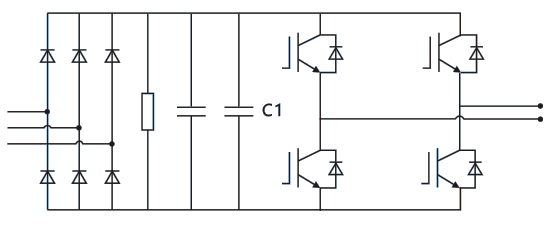

典型線路圖/ Typical circuit

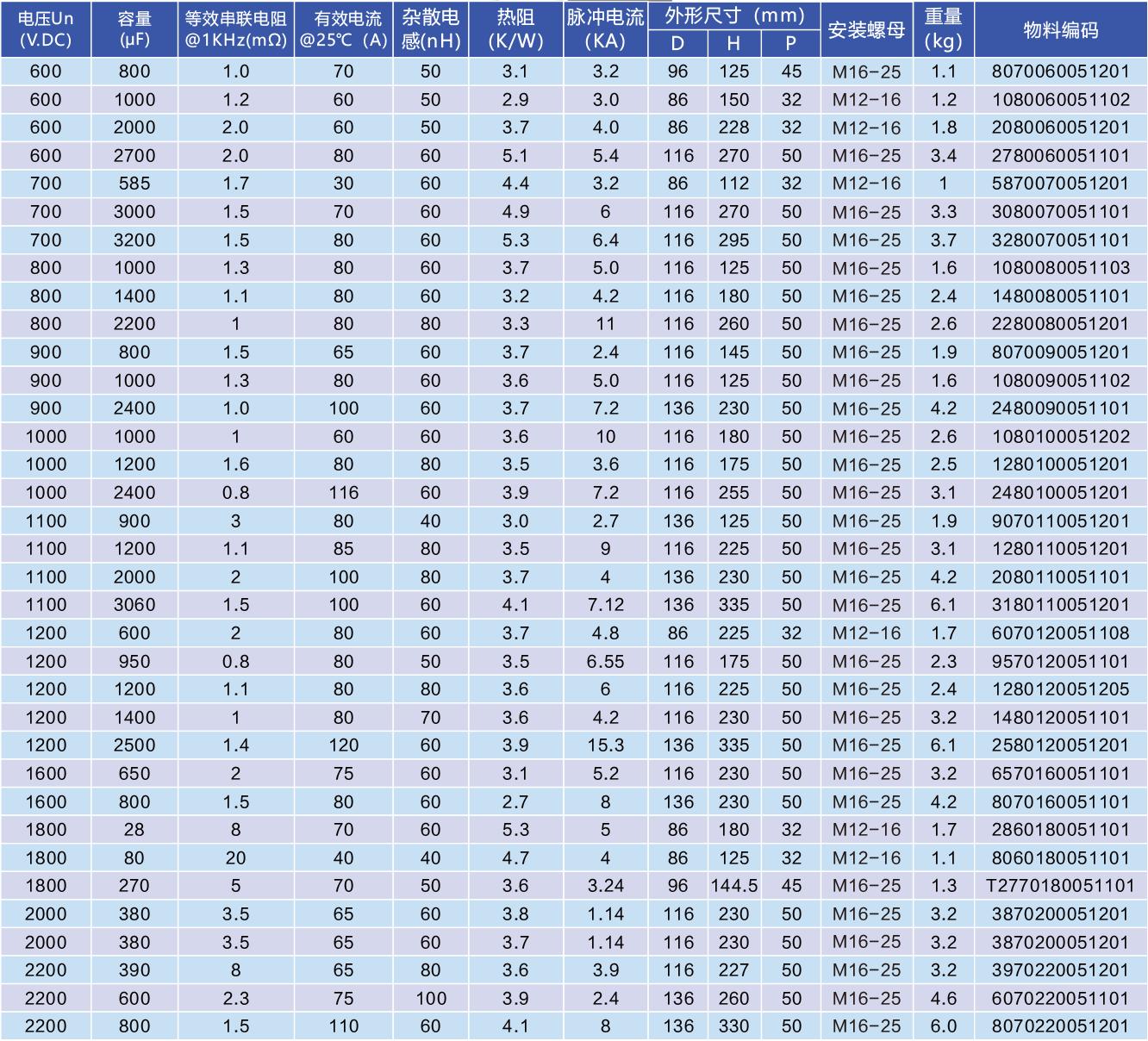

外形圖及參考尺寸/Outline drawing
備注：詳細規格清單及參數查詢公司官方網站，或來電、郵件咨詢。
Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries
性能指標/ Technical data
| 引用標準/Reference to Standard | GB/T17702 -2013，IEC61071-2007 |
| 結構形式/Structure | 金屬化自愈式直流濾波電容，產品為干式 Metallized self-healing DC-Link capacitor, Dry type |
| 封裝方式/Encapsulation | 鋁原色，環氧封裝 Aluminum case, Epoxy resin |
| 容量范圍/Capacitance Range | 100~2600μF |
| 容量允許偏差/Capacitance Tolerance | ±5% (J)，±10% (K) |
| 電壓范圍/Voltage Range | 600V.DC~2200V.DC |
| 極殼耐壓/Utc | 2Ui+1000V.AC/10S (50Hz) (≥2000V.AC)《或根據客戶需求》 or (Refer to customer’s requirement) |
| 極間耐壓/Utt | 1.5Un(DC)/10S |
| 損耗角/Dissipation Factor (tgδ) | tgδ≤0.003(at 10kHz) |
| 絕緣電阻/Insulation Resistance | Ri×C≥5000s |
| 氣候類別/Climate Category | 40/85/21 |
| 工作溫度范圍/Working Temperature | -40℃~70℃ (最大85℃) |
| 儲存溫度范圍/Storage Tempearture | -40℃~85℃ |
| 使用海拔/Altitude | ＜2000m |
| 最大電極扭矩/Max ElectrodeTorque | M6：3N.m |
| 最大安裝扭矩/Max Install Torque | 10N.m |
| 預期壽命/Expected life time | 100000h |
| 阻燃性/Flammability | UL94v-0 |
| 失效率/Failure Rate | 30FIT |
備注：如果海拔使用高度超過了2000m，應該考慮海拔對流冷卻和外絕緣的影響。
Note: It should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m
