MLC-SB

MLC-SB

分類：吸收電容
金屬化薄膜無感吸收保護電容器
特點/ Feature
● 體積小，安裝方便，搭配靈活
● Low volume, easy installation
and flexible combination
  • 案例詳情
  • 更多內容

應用場合/ Applications

● 廣泛用于UPS、逆變器、電焊機等工業電 力電子設備的直流母線高頻紋波吸收。

● Widely used in UPS, converter, welding machine to absorb DC-BUS high frequency ripple current.

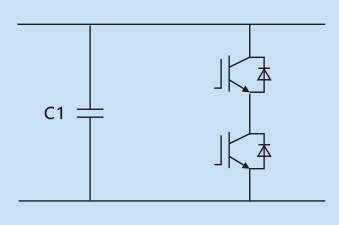

典型線路圖/ Typical circuit



外形圖及參考尺寸/Outline drawing

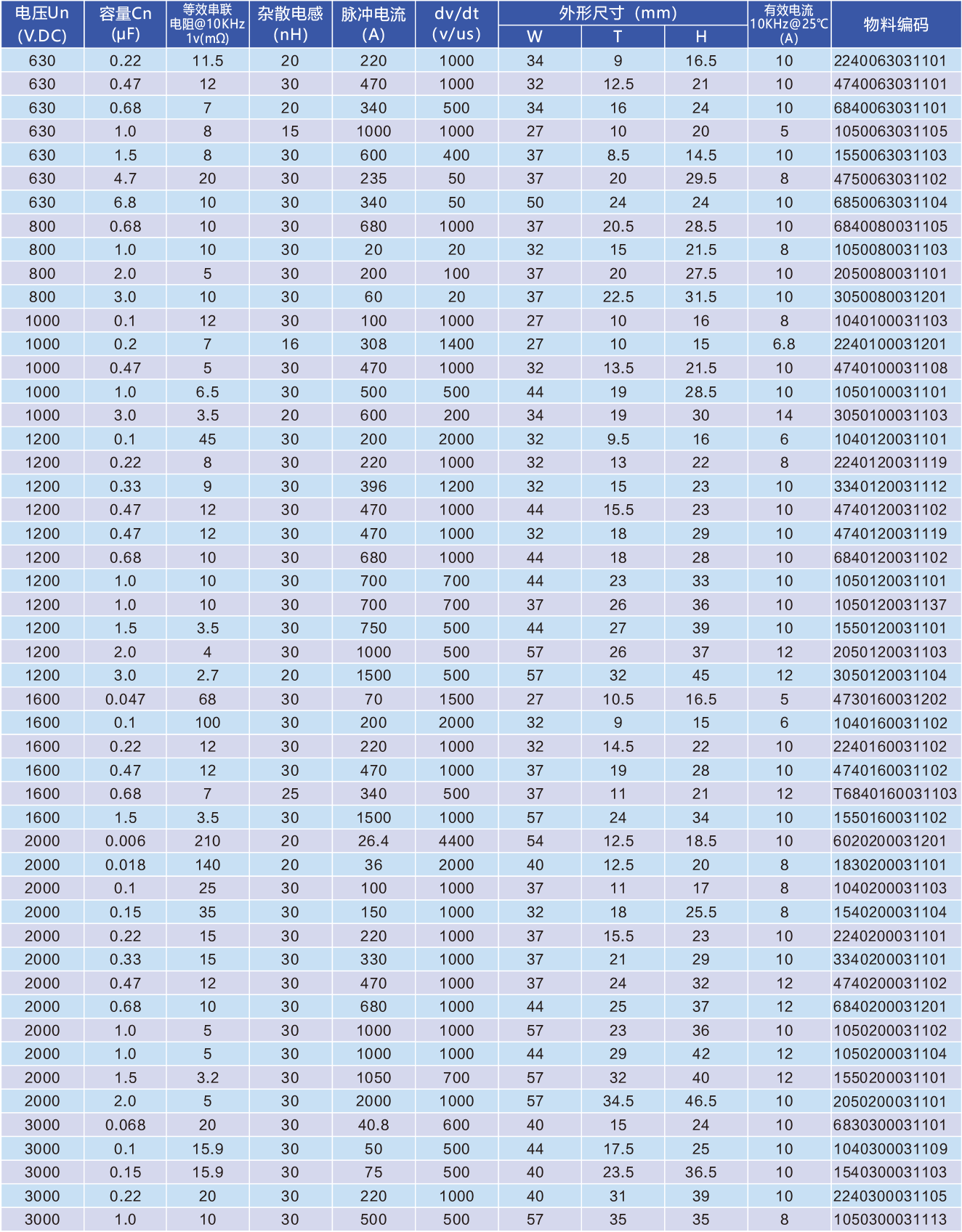

備注：詳細規格清單及參數查詢公司官方網站，或來電、郵件咨詢。

Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries


性能指標/ Technical data

引用標準/Reference to StandardGB/T17702
結構形式/Structure水冷式 Water cooling type
封裝方式/Encapsulation銀色鋁外殼，白色環氧  Sillver colour, Aluminum case, White epoxy resin
容量范圍/Capacitance Range0.06~0.6μF
容量允許偏差/Capacitance Tolerance±5% (J)，±10% (K)
電壓范圍/Voltage Range300V.AC~4000V.AC
極間耐壓/Utt1.5Un(DC)/10S
損耗角/Dissipation Factor (tgδ)tgδ≤0.0006 (at 1kHz)
絕緣電阻/Insulation ResistanceRi≥15000MΩ (at 20℃ 100V.DC 60s)
氣候類別/Climate Category40/85/21
工作溫度范圍/Working Temperature-40℃~85℃
儲存溫度范圍/Storage Tempearture-40℃~85℃
使用海拔/Altitude＜2000m
最大電極扭矩/Max ElectrodeTorqueM6：3N.m 參照IEC61881
預期壽命/Expected life time100000h
阻燃性/FlammabilityUL94v-0
失效率/Failure Rate30FIT

備注：如果海拔使用高度超過了2000m，應該考慮海拔對流冷卻和外絕緣的影響。

Note: It should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m.
