應用場合/ Applications
● 變頻器
● 高壓軟啟動
● 中頻爐電源
● Converter
● High voltage soft reset
● Intermediate frequency furnace power

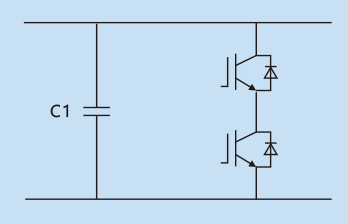

典型線路圖/ Typical circuit
外形圖及參考尺寸/Outline drawing

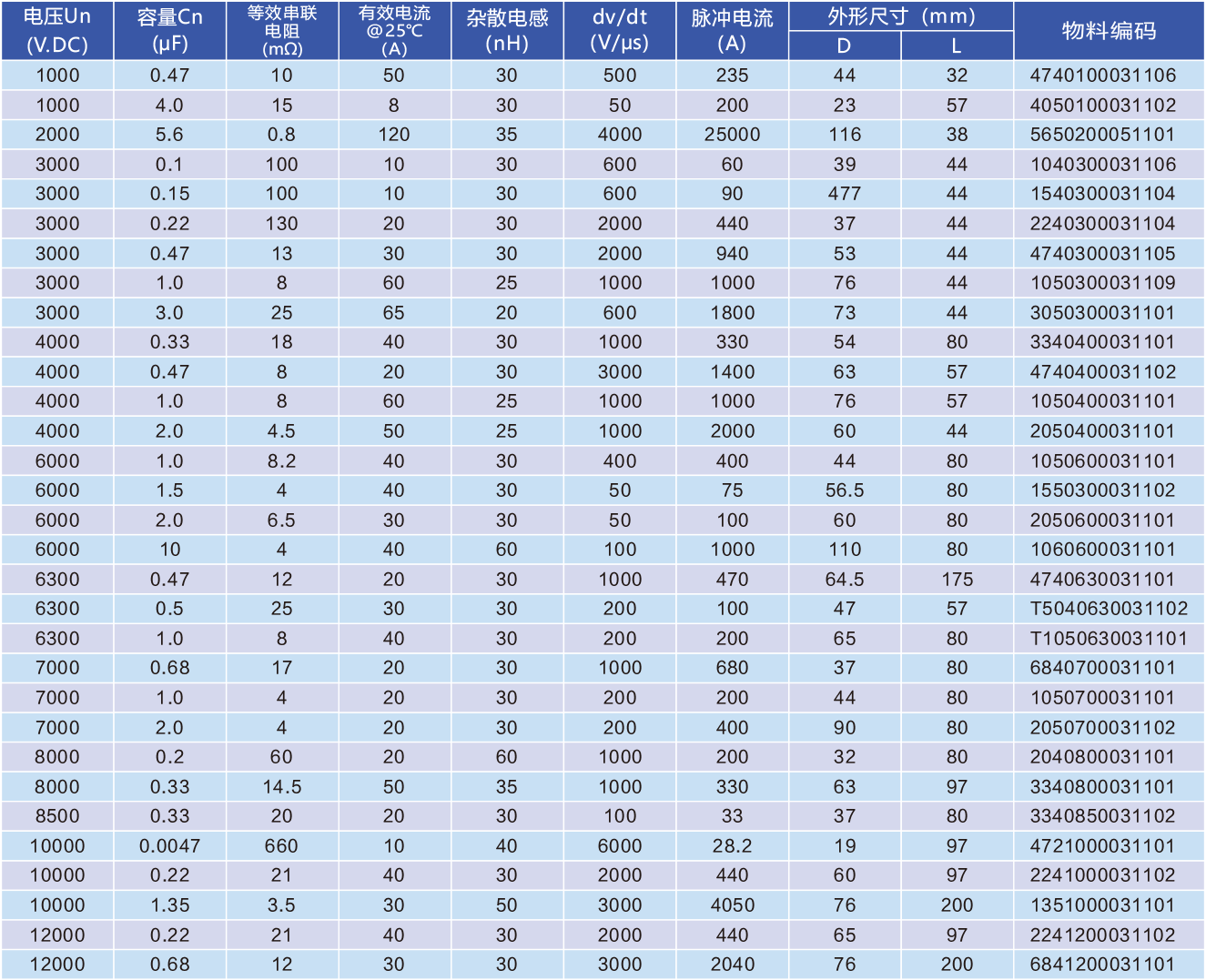

備注：詳細規格清單及參數查詢公司官方網站，或來電、郵件咨詢。
Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries
性能指標/ Technical data
| 引用標準/Reference to Standard | GB/T17702 -2013 |
| 結構形式/Structure | 金屬薄膜無感式，產品為干式Metallized self-healing DC-Link capacitor, Dry type |
| 封裝方式/Encapsulation | 白色邁拉膠帶/塑料外殼，環氧封裝 C1 C7 Out White mylar tape/ Plastic case, Epoxy resin |
| 容量范圍/Capacitance Range | 0.1~4.7μF |
| 容量允許偏差/Capacitance Tolerance | ±5% (J)，±10% (K) |
| 電壓范圍/Voltage Range | 600V.DC~7000V.DC (50kHz) |
| 極間耐壓/Utt | 1.5Un/10S |
| 損耗角/Dissipation Factor (tgδ) | tgδ≤0.0008 (at 1kHz) |
| 絕緣電阻/Insulation Resistance | Ri×C≥5000s (at 20℃ 100V.DC 60s) |
| 氣候類別/Climate Category | 40/85/21 |
| 工作溫度范圍/Working Temperature | -40℃~85℃ |
| 儲存溫度范圍/Storage Tempearture | -40℃~85℃ |
| 使用海拔/Altitude | ＜2000m |
| 預期壽命/Expected life time | 100000h |
| 阻燃性/Flammability | UL94v-0 |
| 失效率/Failure Rate | 30FIT |
備注：如果海拔使用高度超過了2000m，應該考慮海拔對流冷卻和外絕緣的影響。
Note: It should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m
