應用場合/ Applications
● 適用于電力電子設備、UPS電源中的交流濾波
電路，能承受較高的紋波電流及峰值電流、電壓。
● Used to support high ripple current,
peak current and voltage in the AC
filter circuit of power electronic equipment, UPS etc

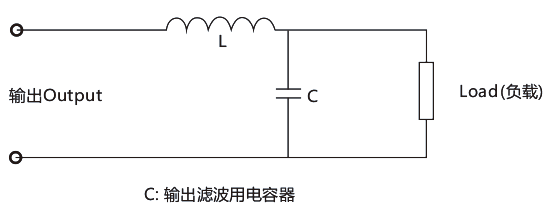

典型線路圖/ Typical circuit
外形圖及參考尺寸/Outline drawing

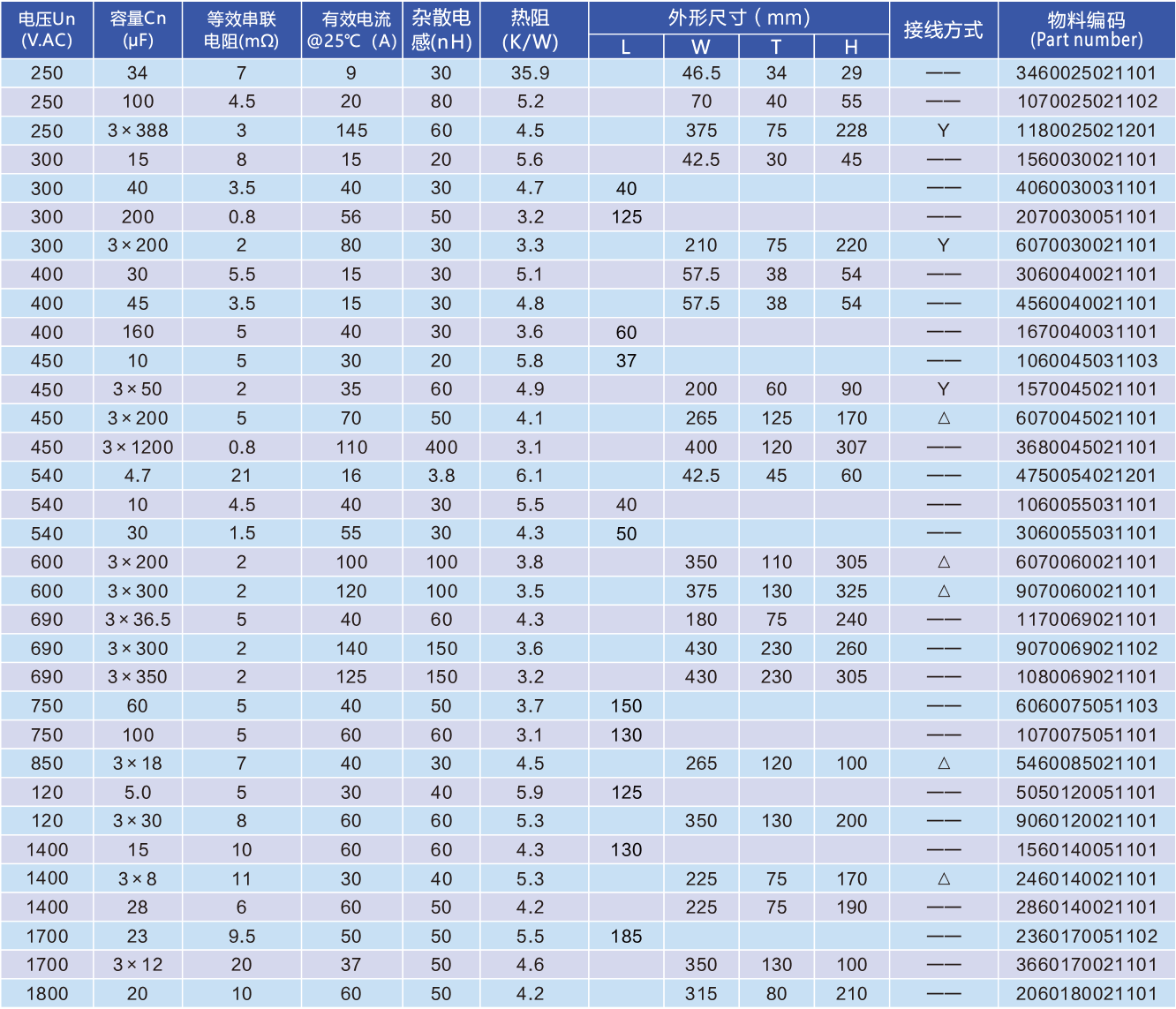

性能指標/ Technical data
| 引用標準/Reference to Standard | GB/T12747 GB/T 11024(1KV以上） |
| 結構形式/Structure | 金屬化自愈式交流濾波電容，產品為干式 Metallized film AC filter capacitor, Dry type |
| 封裝方式/Encapsulation | 銀色鋁殼/不銹鋼外殼，環氧 封裝 Sillver color aluminum case/stainless steel case, Epoxy resin |
| 容量范圍/Capacitance Range | 30~5000μF |
| 容量允許偏差/Capacitance Tolerance | ±5% (J)，±10% (K) |
| 電壓范圍/Voltage Range | 300V.AC~2000V.AC |
| 極殼耐壓/Utc | 2Un+1000V.AC/10S(50Hz) ≥2000V.AC 或根據客戶要求 |
| 極間耐壓/Utt | 1.5Un(DC)/10S |
| 損耗角/Dissipation Factor (tgδ) | tgδ≤0.001 (at 1kHz) |
| 絕緣電阻/Insulation Resistance | Ri×C≥5000s |
| 氣候類別/Climate Category | 40/85/21 |
| 工作溫度范圍/Working Temperature | -40℃~85℃ |
| 儲存溫度范圍/Storage Tempearture | -40℃~85℃ |
| 使用海拔/Altitude | ＜2000m |
| 最大電極扭矩/Max ElectrodeTorque | M6：3N.m / M8:6N.m / M10：10N.m / 參照IEC61881 |
| 最大安裝扭矩/Max torque | 10N.m |
| 預期壽命/Expected life time | 100000h |
| 阻燃性/Flammability | UL94v-0 |
| 失效率/Failure Rate | 30FIT |
備注：如果海拔使用高度超過了2000m，應該考慮海拔對流冷卻和外絕緣的影響。
Note: It should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m.
