應用場合/ Applications
● 大功率超音頻感應加熱設備的諧振電路。
● Used in the induction heating resonant circuit system for high power &
superaudio.

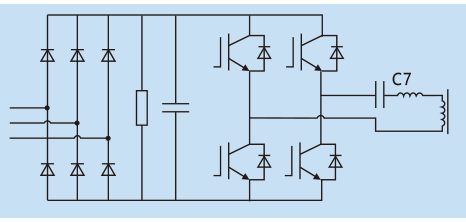

典型線路圖/ Typical circuit

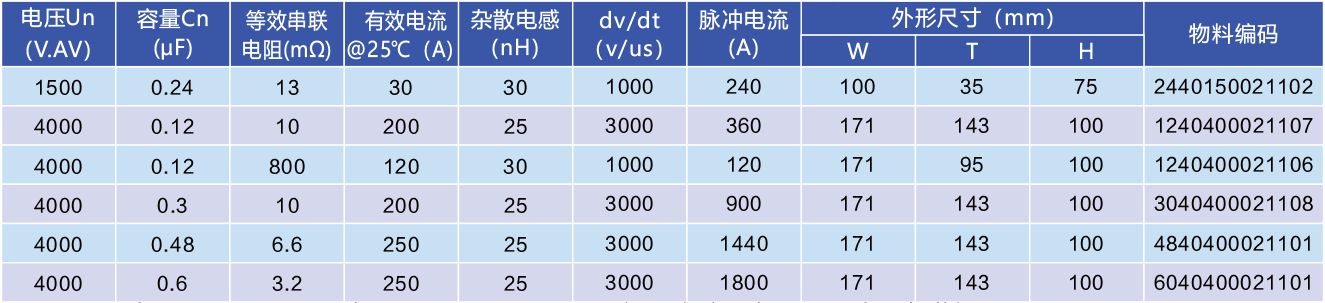

外形圖及參考尺寸/Outline drawing
備注：詳細規格清單及參數查詢公司官方網站，或來電、郵件咨詢。
Note: Detailed Specifications List and Parameters Query Company official website, or call, email inquiries
性能指標/ Technical data
| 引用標準/Reference to Standard | GB/T17702 |
| 結構形式/Structure | 水冷式 Water cooling type |
| 封裝方式/Encapsulation | 銀色鋁外殼，白色環氧 Sillver colour, Aluminum case, White epoxy resin |
| 容量范圍/Capacitance Range | 0.06~0.6μF |
| 容量允許偏差/Capacitance Tolerance | ±5% (J)，±10% (K) |
| 電壓范圍/Voltage Range | 300V.AC~4000V.AC |
| 極間耐壓/Utt | 1.5Un(DC)/10S |
| 損耗角/Dissipation Factor (tgδ) | tgδ≤0.0006 (at 1kHz) |
| 絕緣電阻/Insulation Resistance | Ri≥15000MΩ (at 20℃ 100V.DC 60s) |
| 氣候類別/Climate Category | 40/85/21 |
| 工作溫度范圍/Working Temperature | -40℃~85℃ |
| 儲存溫度范圍/Storage Tempearture | -40℃~85℃ |
| 使用海拔/Altitude | ＜2000m |
| 最大電極扭矩/Max ElectrodeTorque | M6：3N.m 參照IEC61881 |
| 預期壽命/Expected life time | 100000h |
| 阻燃性/Flammability | UL94v-0 |
| 失效率/Failure Rate | 30FIT |
備注：如果海拔使用高度超過了2000m，應該考慮海拔對流冷卻和外絕緣的影響。
Note: It should take consideration regarding to convectional cooling and outter insulation as long as the height is exceed 2000m.
